CL ENCLOSURES WITH POLYCARBONATE DOOR

Low voltage watertight stainless steel enclosures with door with a clear polycarbonate window. Designed for use in harsh environments with very high temperatures, ideal for the food, naval, chemical and petrochemical industries. These enclosures can be customized with a range of standard accessories, special machining and ad hoc or co-designed solutions to customers’ requests.

SAFE ROUNDED EDGES. To prevent accidental cuts when the enclosures are handled all the edges are bent and the corners blunted.

POLYURETHANE GASKET. Operating temperature range:-40°C +90°C.

REAR BUSHING. For fixing the enclosure to the wall (or directly onto equipment) without the need for machining that could alter the protection rating.

DIE-CAST HINGES. in stainless steel with opening greater than 120°.

Point to each picture to read its caption

SAFE ROUNDED EDGES. To prevent accidental cuts when the enclosures are handled all the edges are bent and the corners blunted.

POLYURETHANE GASKET. Operating temperature range:-40°C +90°C.

REAR BUSHING. For fixing the enclosure to the wall (or directly onto equipment) without the need for machining that could alter the protection rating.

DIE-CAST HINGES. in stainless steel with opening greater than 120°.

Would you like to download the product data sheet?

TECHNICAL CHARACTERISTICS

Approval	EN62208: IP66 IK10 UL508A - CSA C22.2 n°. 14-13 NEMA Type 1,12,4,4X
Materials	Stainless steel AISI 304 / WNr. 1.4301 On request AISI 316 / WNr. 1.4404 Finish: Scotch-Brite. Thickness: from 1,2 mm. Cable entry plate: galvanised sheet metal. Thickness: 2,5 mm.
Body	Single-body construction bent and continuously welded, four M6 blind bushes on the body for wall attachment without the need for machining.
Door	Door: AISI 304 stainless steel concealed hinges; door opening greater than 120°. 4mm thick transparent polycarbonate window. Chromed zamak 3mm double bit lock (on demand, AISI 304 and different inserts). Perimeter polyurethane gasket (temp. range -40°C +90°C).
Provided	Grounding accessories and cardboard packing.
Customization	Drilling to drawings and ad hoc solutions.
Accessories	Cable entry plate. Inner door. Rain canopy. Wall brackets. Lock systems. Print pocket.

MAXIMUM CAPACITIES

DOOR	STANDARD BACK PLATE	2 WALL BRACKETS	TOTAL CAPACITY

Dimensional table available in the pdf version of the general catalogue.

DIMENSION TABLE

ENCLOSURES DIMENSIONS			CODE	DOORS N°	WEIGHT	MOUNTING PLATE DIMENSIONS			MOUNTING PLATE CODE	VIEWING DIMENSIONS		DRILLING AREA			APPROVALS
B	H	P				B1	H1	P1		B2	H2	P3	H3	P3	EN62208	UL/CSA
mm	mm	mm			Kg	mm	mm	mm		mm	mm	mm	mm	mm	EN60529-EN62262	UL50E / CSA 22.2
300	300	210	CLA03003021	1	8,50	247	270	194	CPE030030	249	260	282	282	165	IP66 – IK10	1,12,4,4X
300	400	210	CLA03004021	1	9,80	247	370	194	CPE030040	249	360	282	382	165	IP66 – IK10	1,12,4,4X
400	400	210	CLA04004021	1	11,40	347	370	194	CPE040040	349	360	382	382	165	IP66 – IK10	1,12,4,4X
400	500	210	CLA04005021	1	12,90	347	470	194	CPE040050	349	460	382	482	165	IP66 – IK10	1,12,4,4X
400	600	250	CLA04006025	1	16,30	347	570	234	CPE040060	349	560	382	582	205	IP66 – IK10	1,12,4,4X
500	500	210	CLA05005021	1	14,70	447	470	194	CPE050050	449	460	482	482	165	IP66 – IK10	1,12,4,4X
500	500	300	CLA05005030	1	19,10	447	470	284	CPE050050	449	460	482	482	255	IP66 – IK10	1,12,4,4X
500	700	250	CLA05007025	1	20,30	447	670	234	CPE050070	449	660	482	682	205	IP66 – IK10	1,12,4,4X
600	600	250	CLA06006025	1	20,50	547	570	234	CPE060060	549	560	582	582	205	IP66 – IK10	1,12,4,4X
600	600	300	CLA06006030	1	23,30	547	570	284	CPE060060	549	560	582	582	255	IP66 – IK10	1,12,4,4X
600	800	300	CLA06008030	1	29,40	547	770	284	CPE060080	549	760	582	782	255	IP66 – IK10	1,12,4,4X
800	1000	300	CLA08010030	1	48,00	747	970	284	CPE080100	749	960	781	981	254	IP66 – IK10	1,12,4,4X
800	1200	300	CLA08012030	1	54,70	747	1170	284	CPE080120	749	1160	781	1181	254	IP66 – IK10	1,12,4,4X
800	1200	400	CLA08012040	1	64,80	747	1170	384	CPE080120	749	1160	781	1181	354	IP66 – IK10	1,12,4,4X

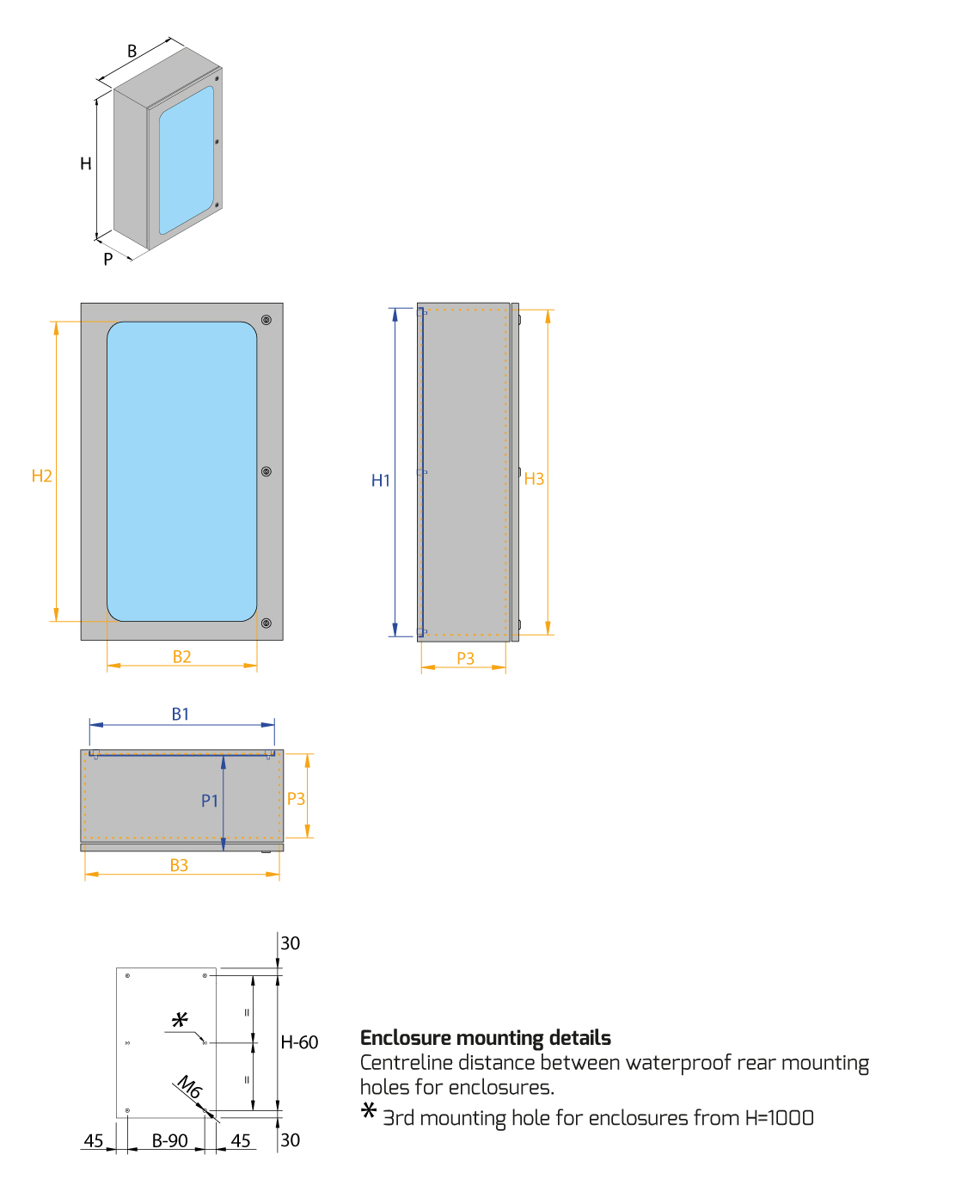

TECHNICAL DRAWING

		Mounting plate dimensions	Door drilling area	Enclosure drilling area
Enclosure width	B	B1	B2	B3
Enclosure height	H	H1	H2	H3
Enclosure depth	P	P1*		P3

* Usable depth between mounting plate and door

GO TO THE ACCESSORIES PAGE

DOWNLOAD THE GENERAL CATALOGUE DOWNLOAD ASSEMBLY INSTRUCTIONS

Download the IP Rating and declarations of conformity

IP Rating	CE declaration of conformity	UL_CSA declaration of conformity

EXPRESS, CUSTOMIZED DRILLING SERVICE

DOWNLOAD THE TECHNICAL DATA SHEET
