SC.X PUSH BUTTON PANELS

Compex watertight stainless steel push button panels are suitable for use in the following industries: food, pharmaceutical, petrochemical and naval. A wide range of low-voltage products customizable with accessories and machining options to suit all customer requirements.

PRE-DRILLED COVER: push button panels with standard pre-drilled holes dia. 22.5mm.

INTERNAL SPACERS. Designed to facilitate installation of our standard accessories.

REAR FIXING DEVICES. Used to secure the box to its supports (or directly onto equipment) without the need for other machining which could alter the protection rating.

COUPLING OF TOP COVER AND SHELL. Designed to provide maximum gasket compression efficiency between the shell and top cover. Ensures that the gasket cannot be accidentally cut when tightening the top cover screws.

SCREW ENGAGEMENT SYSTEM. System on the outside edge of the gasket to guarantee tightness. The top cover is fixed with captive screws that do not fall off.

Point to each picture to read its caption

INTERNAL SPACERS. Designed to facilitate installation of our standard accessories.

REAR FIXING DEVICES. Used to secure the box to its supports (or directly onto equipment) without the need for other machining which could alter the protection rating.

SCREW ENGAGEMENT SYSTEM. System on the outside edge of the gasket to guarantee tightness. The top cover is fixed with captive screws that do not fall off.

Would you like to download the product data sheet?

TECHNICAL CHARACTERISTICS

Approval	EN62208: IP66 IK08 UL508A - CSA C22.2 No. 14-13 NEMA Type 1,12,4,4X
Materials	Stainless steel: AISI 304 / WNr. 1.4301.
On request	AISI 316 / WNr. 1.4404.
Finish	Scotch-Brite. Thickness: from 1.2 mm.
Body	Single-body construction bent and continuously welded, M5 blind bushes on the body for wall attachment without the need for machining.
Cover	Polyurethane gasket (temp. range -40°C +90°C) along the perimeter. Cover mounting cross pan head captive screws (different pan heads can be provided on request).
Drilled cover	Hole dia. 22.5 with anti-rotation feature. Centre distance between holes 50 mm.
Provided	Earthing accessories and cardboard packing.
Customization	Drilling to drawings and ad hoc solutions.
Accessories	Wall brackets. Internal plate. Supports for DIN guides. Screws.

Dimensional table available in the pdf version of the general catalogue.

DIMENSION TABLE

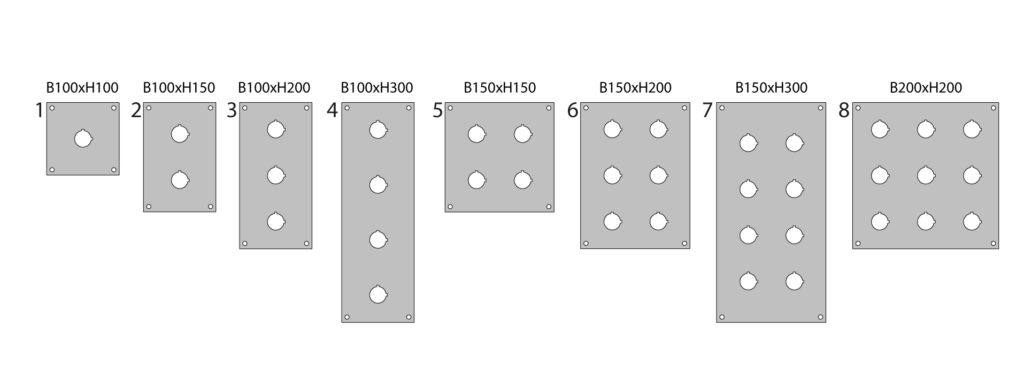

	PUSH BUTTON DIMENSIONS			CODE	WEIGHT	HOLES	DRILLING AREA			REAR BUSHING CENTRE DISTANCE			APPROVALS
	B	H	P			N°	B3	H3	P3	N° *	B1	H2	EN62208	UL/CSA
	mm	mm	mm		Kg	qty	mm	mm	mm	Pcs.	mm	mm	EN60529 - EN62262	UL50E / CSA 22.2
1	100	100	90	SCA01001009.1	1,10	1	82	72	54	2	50	60	IP66 / IP69K – IK08	1,12,4,4X
2	100	150	90	SCA01001509.2	1,30	2	132	72	54	2	50	110	IP66 / IP69K – IK08	1,12,4,4X
3	100	200	90	SCA01002009.3	1,50	3	182	71	54	2	50	160	IP66 / IP69K – IK08	1,12,4,4X
4	100	300	90	SCA01003009.3	1,90	4	282	71	54	2	50	260	IP66 / IP69K – IK08	1,12,4,4X
5	150	150	90	SCA01501509.4	1,50	2x2	132	71	54	2	75	110	IP66 / IP69K – IK08	1,12,4,4X
6	150	200	90	SCA01502002.6	1,80	2x3	182	71	54	2	75	160	IP66 / IP69K – IK08	1,12,4,4X
7	150	300	90	SCA01503009.8	2,30	2x4	282	70	54	4	110	260	IP66 / IP69K – IK08	1,12,4,4X
8	200	200	90	SCA02002009.9	2,10	3x3	182	70	54	4	160	160	IP66 / IP69K – IK08	1,12,4,4X

* Number of rear mounting holes

TECHNICAL DRAWING

		Centreline distance between rear mounting holes	Cover drilling area	Enclosure drilling area
Push button panel width	B	B1	B2	B3
Push button panel height	H	H1	H2	H3
Push button panel depth	P			P3
